How to Model Welded Metal in SketchUp

Welded metal, as a commonly used industrial material, plays an important role in many fields, especially in industries like architecture, mechanical design, and aerospace. Unlike ordinary metal materials, welded metal features unique seams, textures, and surface characteristics, making it essential to pay special attention to these details during the modeling process. This article will guide you through the steps of modeling welded metal in SketchUp, from basic modeling to detailed rendering, helping you create a more realistic and refined welded metal effect.

Key Characteristics of Welded Metal

Before starting the modeling process, it’s crucial to understand the basic characteristics of welded metal. Typically, welded metal is created by joining two metal pieces together at high temperatures, resulting in visible seams. These seams often exhibit bumps, indentations, or irregular textures. Therefore, when modeling in SketchUp, you need to carefully consider these details to ensure your model accurately represents the welding effect.

The main characteristics of welded metal include:

Weld Seams: Welded joints often have an obvious raised area. These seams can be uniform or irregular, depending on the welding process used.

Surface Textures and Marks: During the welding process, the metal surface can be affected by high temperatures, creating different textures and scratches. Additionally, the metal may exhibit color changes, such as oxidation spots or discoloration.

Glossiness: The surface of welded metal typically has a high gloss, especially immediately after welding when the surface is smooth and highly reflective. Over time, the surface may become slightly dull due to oxidation.

Metal Strength and Thickness: Welded metal often has a certain thickness, and the seam area may be stronger than other parts. Considering these physical properties will help you model the welded metal more accurately.

Steps and Techniques for Modeling Welded Metal in SketchUp

Modeling welded metal in SketchUp involves more than just creating a simple metal shape. You’ll also need to simulate its unique surface textures, seam details, and gloss effects. Below, we’ll explore how to use various SketchUp tools to create a realistic welded metal model.

Choose the Right Tools and Build the Basic Model

Before you start modeling, first think about the structure and form of your welded metal model. Depending on your design requirements, the welded metal model could be pipes, frames, brackets, or other forms. Using SketchUp's basic tools, you can easily create the basic outline of these shapes.

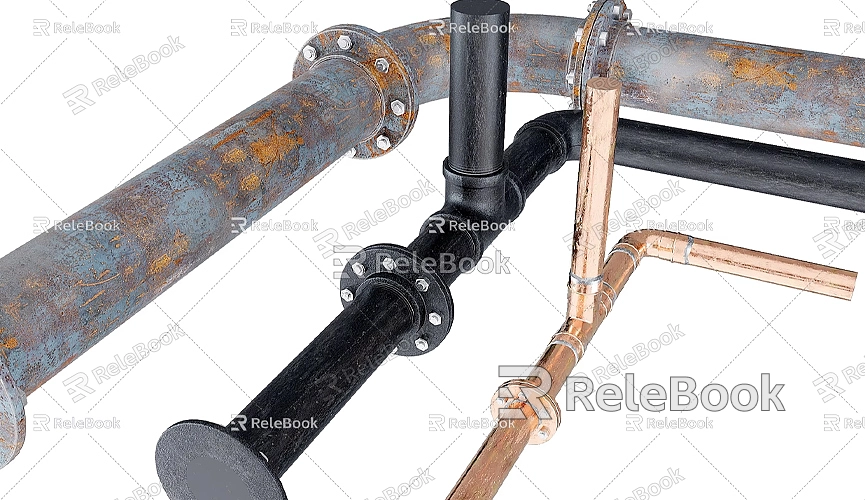

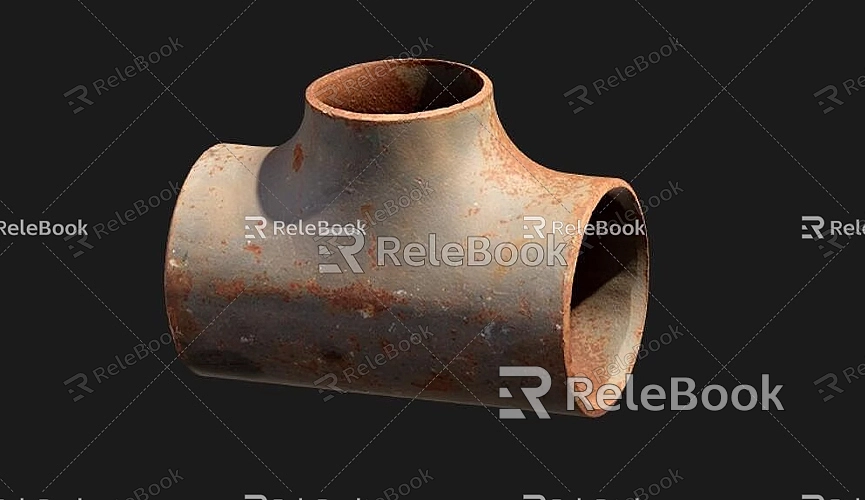

Pipes and Round Metal Parts: If your welded metal involves pipes or round metal structures, you can use the Circle Tool to create a circular cross-section and then use the Push/Pull Tool to extrude the pipe shape. Be sure to add welding details at the ends of the pipe to simulate seams and connection points.

Frames and Brackets: If you’re modeling a metal frame or bracket, you can use the Rectangle Tool to create the basic shape of the frame and then use the Push/Pull Tool to extrude it into three dimensions. Pay particular attention to the weld points at the joints to accurately simulate the seams.

Simulating Weld Seams and Weld Points

The most distinctive feature of welded metal is its seams and weld points. In SketchUp, there are several methods to simulate these details as realistically as possible.

Seam Details: Use the Push/Pull Tool or the Move Tool to make slight adjustments to the weld area, creating small bumps or indentations that simulate the flow and solidification of metal during the welding process.

Weld Point Details: Weld points are typically raised areas formed by molten metal. In SketchUp, you can use the Cylinder Tool or the Circle Tool to create the weld point detail, placing it at the seam and then using the Push/Pull Tool to extrude it, giving the weld a three-dimensional appearance.

Irregularity of the Weld: One key feature of welded seams is their irregularity. To make your seams look more natural, introduce small variations to break the uniformity. For instance, you can add slight indentations or irregular welding patterns at the seams to make them appear more realistic.

Adding Textures and Materials

Modeling welded metal is not only about creating shapes but also about enhancing the realism of the model through the application of textures and materials. SketchUp offers a variety of material libraries, and you can also import custom textures.

Using Metal Textures: SketchUp comes with several metal textures, such as stainless steel, aluminum, and iron. Depending on your project, you can apply the appropriate texture to the surface of your model to simulate the appearance of welded metal.

Importing Custom Textures: If the default textures don’t meet your needs, you can import detailed metal textures from external sources. For example, you can download metal surface textures with effects like oxidation, scratches, and rust, which will enhance the realism of the welded parts.

Adjusting Material Glossiness: Metal surfaces usually have a high gloss, particularly right after welding when the metal surface is smooth and reflective. You can adjust the glossiness and reflectivity of the metal’s surface in the material editor to enhance its realism and simulate light reflection.

Using Plugins to Enhance the Modeling Process

SketchUp has a rich ecosystem of plugins that can greatly improve the efficiency and precision of your welded metal modeling. Using these plugins allows you to handle the metal shapes, seams, and textures more accurately and save considerable time.

Weld Plugin: This plugin allows you to easily handle the connections between metal parts, especially when modeling pipes or frames. It enables you to join multiple edges and faces into a single entity, simulating the effect of welding.

Pipe and Tube Plugin: If you need to model metal pipes, this plugin is incredibly useful. It helps you quickly create realistic pipe structures, and when working on complex welded metal pipe projects, it can significantly improve your modeling efficiency.

Rendering and Detail Enhancement

Modeling welded metal involves not just shapes and materials, but also how you showcase the metal’s properties through rendering and detailed processing. While SketchUp’s native rendering tools can produce basic results, using advanced rendering plugins like V-Ray or Enscape can significantly improve the final effect.

Lighting and Shadows: Metal surfaces are very sensitive to light reflection, so you need to carefully manage the lighting and shadow effects when rendering. By adjusting the light sources, you can enhance the texture and feel of the welded metal.

Surface Reflection and Texture Details: The reflective nature of metal is one of its key features, and welded parts often require more refined reflection effects. Adjusting the reflection and roughness settings can help simulate the metal’s surface texture and reflective properties.

Modeling welded metal in SketchUp involves a step-by-step process that includes creating basic shapes, sculpting details, and adding textures. Each step requires careful attention to detail. By mastering the appropriate modeling techniques and effectively utilizing SketchUp’s tools and plugins, along with proper adjustments in texture and rendering, you can create realistic and detailed welded metal models. Welded metal is not just a collection of shapes; it’s a structure full of details and dynamics that reflect the strength and beauty of industrial and architectural designs.
